Brief Introduction

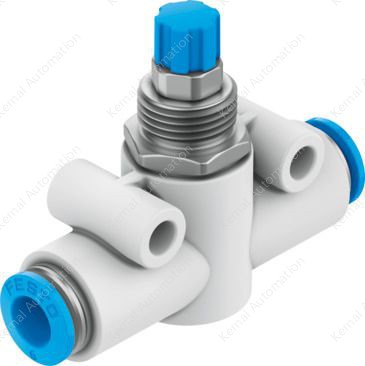

GR-QS-6

Valve functionOne-way throttling functionP-port connection, port 1QS-6Air connection, port 2QS-6Adjusting elementsKnurled screwsInstallation:Panel mountingWith through-holesWith attachmentsEither:Standard nominal flow in the flow control direction245 l/minStandard nominal traffic in the blockade direction430 l/minWork pressure0.2 bar ... 10 barAmbient temperature-10 °C ... 60 °CHousing materialReinforced polyamideExplosion proofThe information in the certificate must be followed!Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Installation locationOptionalsymbol00991453Working mediumCompressed air according to ISO 8573-1:2010 [7:4:4]Description of the working and pilot mediaCan be operated with lubricating medium (must be lubricated all the time thereafter)Paint wetting defective substance (PWIS) complianceVDMA24364-B1/B2-LMedium temperature-10 °C ... 60 °CProduct weight22 gMaterial Description:RoHS compliantSeal materialNBRRelease ring materialPOMKnurled head materialReinforced polyamideAdjust the screw materialHigh-alloy steel
